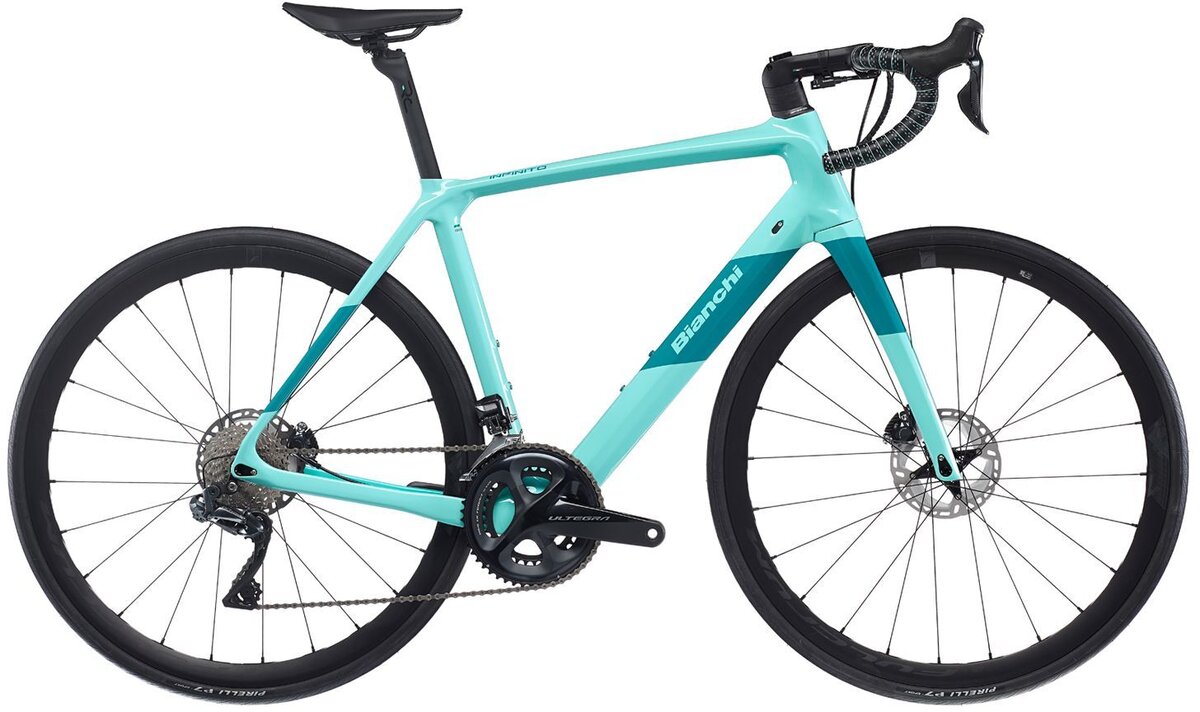

INFINITO CV DISC
The new Bianchi Infinito CV Disc carbon bike is the ultimate choice for long rides - pro races or gran fondo events. Designed to be faster and smoother, the new Infinito CV with disc brakes is built for endurance.
NEW FRAME DESIGN
The Infinito CV Disc, with its re-designed frame shape, has been developed with endurance-specific geometry and thru-axle rear dropouts for optimum integration with disc brakes.
Longer chainstays help smooth the ride, and a taller aero headtube gives the rider a low-stress neck position, enhanced by Countervail’s vibration canceling capacity. The specific CV tuning process reduces rider’s muscle fatigue and increases control for a better overall performance, especially on bumpy roads and cobblestone sections.
The new Infinito CV Disc has been engineered to be also more aero by using a new integrated-look carbon seatpost. The bike is also compatible with Metron 5D aero handlebar for those who want a special touch to the sleek overall aesthetic of the new model.
LESS FATIGUE, MORE CONTROL
Like Bianchi’s first-generation model, the new Infinito CV Disc is engineered with the revolutionary Bianchi CV System, using patented Countervail carbon material, to cancel road vibrations.
WHAT IS COUNTERVAIL?
The key technology Countervail is a carbon composite-material system that combines patented structural carbon with viscoelastic resin.
BIANCHI CV INTEGRATED VIBRATION CANCELLING SYSTEM
Bianchi collaborated with Materials Sciences Corporation to develop their innovative and exclusive use of the MSC’s patented Countervail integrated vibration canceling system for cycling.
Countervail is a carbon composite-material system that, with special fiber architecture, combines patented structural carbon with viscoelastic resin. Countervail cancels 80% of vibrations while increasing the stiffness and strength of Bianchi carbon frames and forks.
Countervail is embedded within the entire frame of Bianchi CV high-performance road and MTB models: Specialissima, Oltre XR4, Oltre XR3, Infinito CV, Aquila CV, and Methanol CV.
PROVEN IN NASA AEROSPACE OPERATIONS
Traditional passive damping in frames using superficial rubber inserts and isolators are marginally effective compared to the integrated carbon Countervail system developed by Bianchi for cycling and proven in the extreme conditions of NASA aerospace operations.
OPTIMIZED FRAME PERFORMANCE
The specific CV tuning process reduces rider’s muscle fatigue and increases control for a better overall performance, especially on bumpy roads and cobblestone sections.
The Infinito CV Disc is fitted with a shallow curved blade, aero, full-carbon fork. Featuring a 1-1/8 – 1.5in tapered steer tube and 12x100mm thru-axle dropouts, for steering stability and precision and braking performance.
The fork weighs 390g.
INTEGRATED DISC BRAKE MOUNTS
The Infinito CV Disc frame and fork feature fully-integrated Flat Mount Disc brakes, delivering uniform power, increased efficiency and precise modulation for strong predictable braking, in any weather conditions. Compatible with 140 or 160mm rotors. Cables for brakes and drivetrain are all internally routed.
Riding long distances requires a special focus on perfect fit. The downtube diameter on the 57-61cm frames is Infinito CV Disc is increased by 5mm to increase torsional stiffness and optimize weight.
Infinito CV Disc uses an integrated-look carbon seatpost, featuring a saddle rail clamp that is adjustable for fore/aft position from +25 to -10mm. This allows riders to create the perfect seated pedaling position for maximum performance over extended hours.
LARGER VOLUME TYRES
When riding long distances with extended time in the saddle, larger volume tires are the answer. The Infinito CV Disc is compatible with tires up to 32mm. High-volume tires add extra grip, comfort, and control, without affecting rolling efficiency, or speed.
|Frame||Infinito CV Disc, Carbon w/Countervail, mechanical/ electronic compatible, 32mm tire clearance, PF86 bottom bracket, thru axle|
|Fork||Bianchi Full Carbon w/Countervail Disc, 1.5" tapered steer tube, flat mount, thru axle, 32mm tire clearance|
|Headset||Fsa Orbit C-40-ACB|
Front: 100 x 12mm
Rear: 142 x 12mm
|Rims/Wheels||Fulcrum Racing 518 disc brake|
|Tires||Vittoria Rubino Pro G+ Isotech graphene 700x28|
|Crankset||Shimano Ultegra FC-R8000 50x34T|
|Bottom Bracket||Shimano SM-BB72-41B|
|Chain||Shimano Ultegra CN-HG701-11, 11sp|
|Front Derailleur||Shimano Ultegra FD-R8000|
|Rear Derailleur||Shimano Ultegra RD-R8000 SS 11sp|
|Cassette/Rear Cogs||Shimano Ultegra CS-R8000, 11-30T|
|Shifters||Shimano Ultegra ST-R8020 2x11sp|
|Handlebars||Reparto Corse Compact alloy 2014|
|Tape/Grips||Bianchi Microfiber w/Eva-139|
|Stem||Reparto Corse 3D Forged alloy 7050|
|Brake Levers||Shimano Ultegra ST-R8020 2x11sp|
|Saddle||Fi'zi:k Aliante R7|
|Seat Post||Infinito Full Carbon|
* Subject to change without notice.
